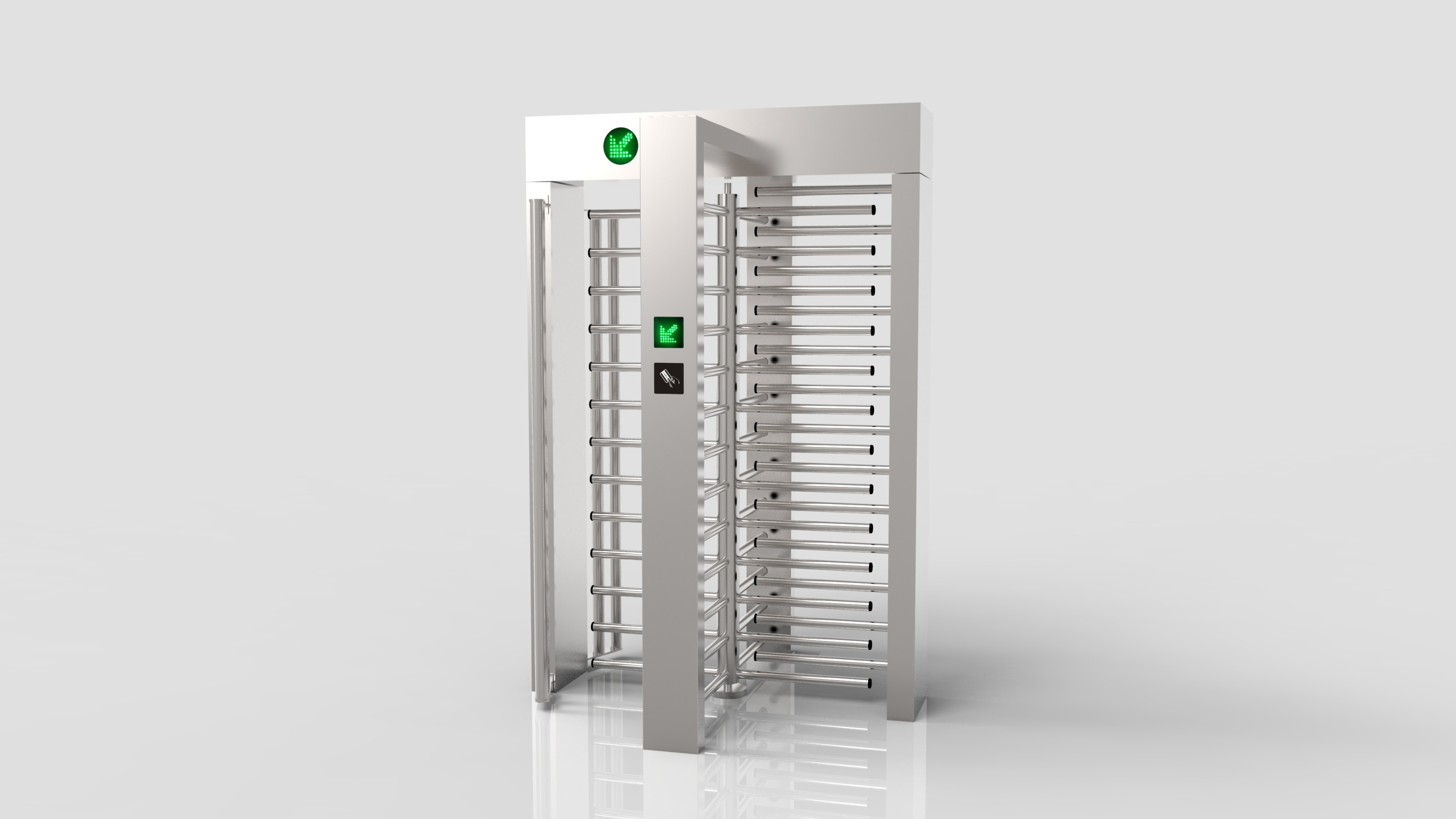

AUTO Full Height Turnstile AT-F900

AUTO Full Height Turnstile AT-F900

AT series semi auto stainless steel full-height turnstile can achieve maximum access security control.

Users are not able to crawl underneath or climb over to gain unauthorized access into premise.

Full height turnstile can effective control single pass through each time.

Semi auto turnstile operation is based on solenoid lock that selectively allow or block rotation direction.

AT-F900 is built with high quality material to withstand outdoor usage for years to come.

     EASY INTEGRATION

Easy integration with any third party access control or ticketing via dry contact interface.

      MINIMUM MAINTENANCE

The housing is made of high quality stainless steel, and all the internal parts are with antirust and antiseptic treatment to achieve high level of durability.

      HIGHER SECURITY

Full height turnstile design with high door panel to prevent unauthorized visitor from gaining access by climbing over or crawling under the gate.

      SELF CENTERING

If arm is rotated more than half, it will automatically fall forward to complete the rotation. If arm is rotated less than half, it will automatically fall backward to return to home position. This will avoid arm does not stop halfway that may allow unauthorized access.

       ANTI TAILGATING

Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back after arm has been rotated more than half.Therefore current user can only finish the rotation to pass through or reverse the rotation to exit. Either way, it will not allow second person to pass through again

       EMERGENCY RECOVER

During power failure, door panel wil open automatically to allow free pass through. In the event of emergency such as fire alarm, sliding barrier can be manually trigger to open permanently to allow fast evacuation.

Control mode :

From the remote control panel or a wireless remote control(in the pulse control mode).

From access control system via a controller (in either pulse or potential control mode).

The turnstile is a normally closed unit(N/C),it is remains unlocked until it receives a valid authorization or is unlocked with a mechanical release key.

If integrated into a fire alarm system,the turnstile can also be automatically unlocked by fire alarm signal.

Different Mode :

Single passage in the set direction(the turnstile is open for one passage in the permitted direction and closed in the opposite direction).

Bi-directional single passage(the turnstile is open for one passage in each direction).

Free passage in the set direction(the turnstile is open for multiple passages in the permitted direction and closed in the opposite direction).

Free passage in the one direction,single passage in the opposite direction(the turnstile is open for multiple passages in the permitted direction and one passage in the opposite direction).

Always free(the turnstile is open for entry and exit).

Always locked(the turnstile is closed for entry and exit).
