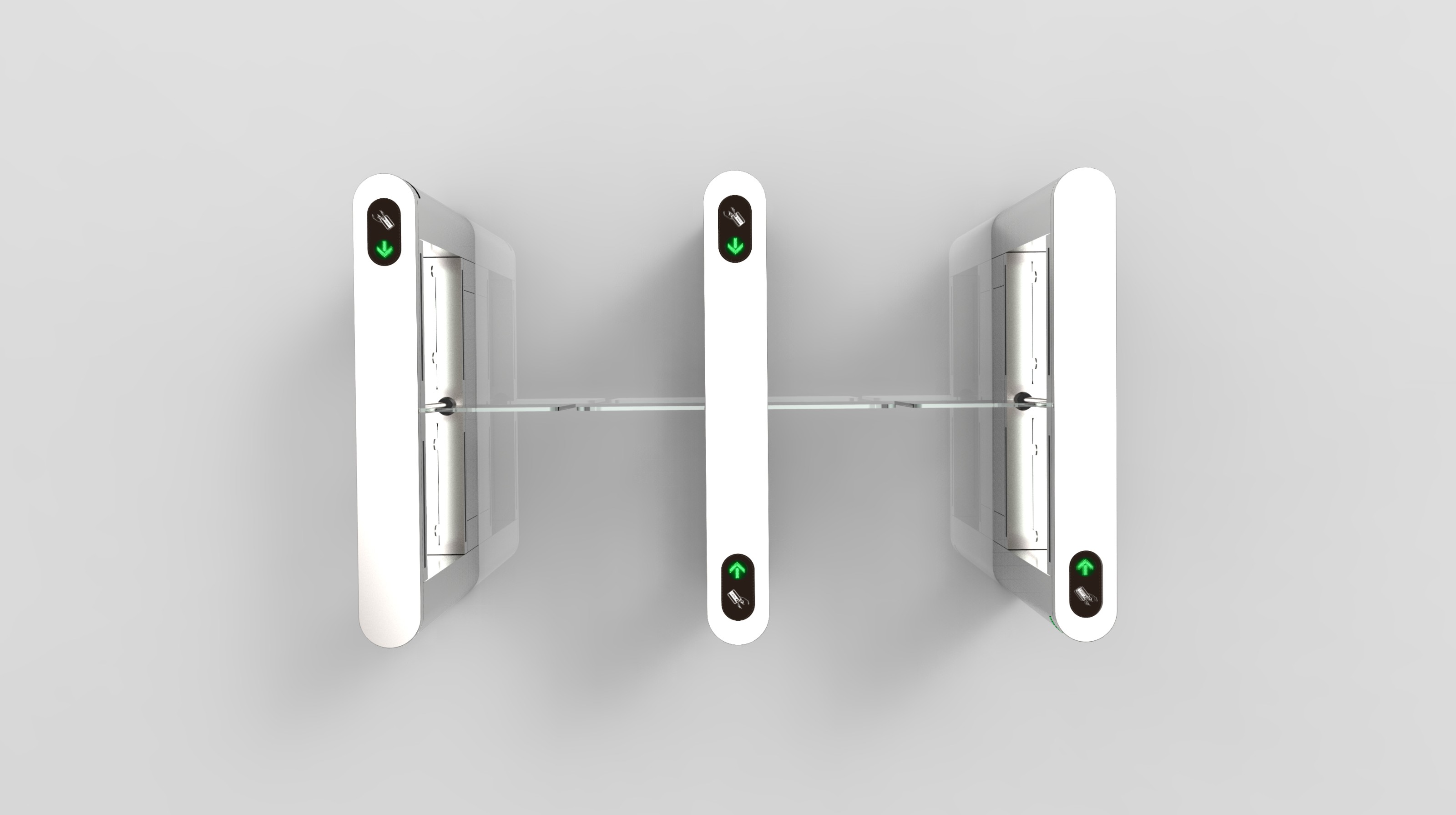

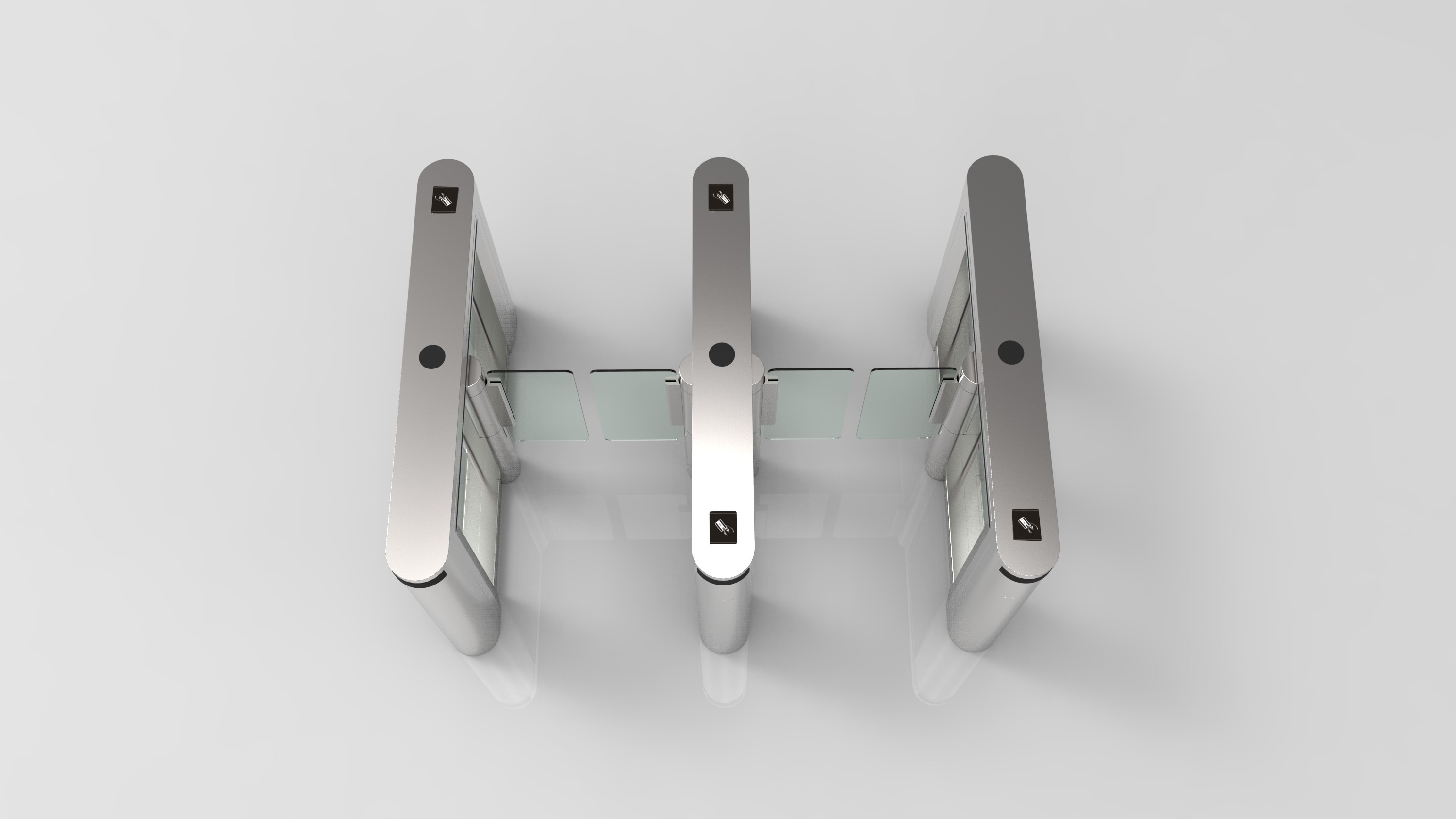

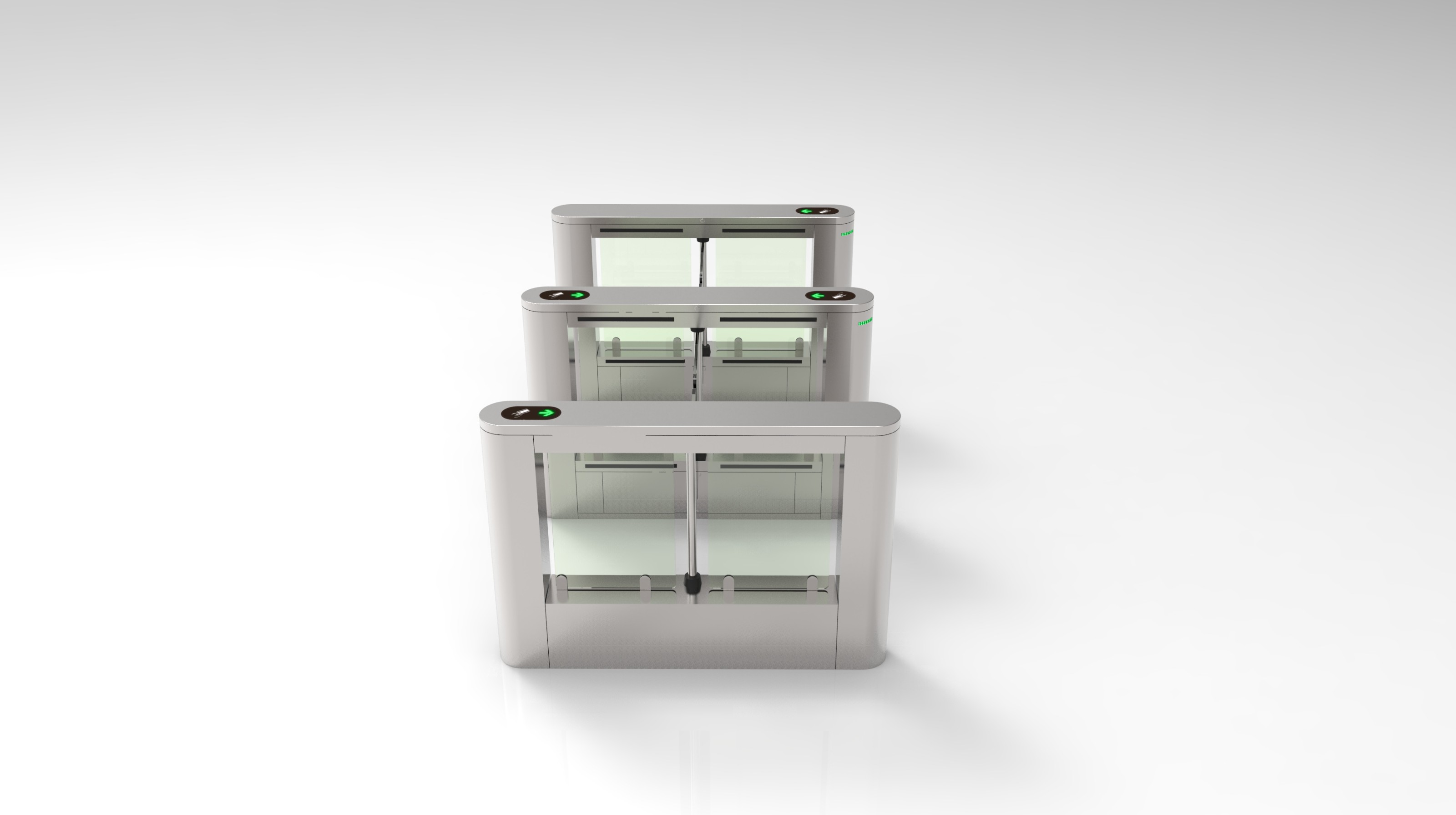

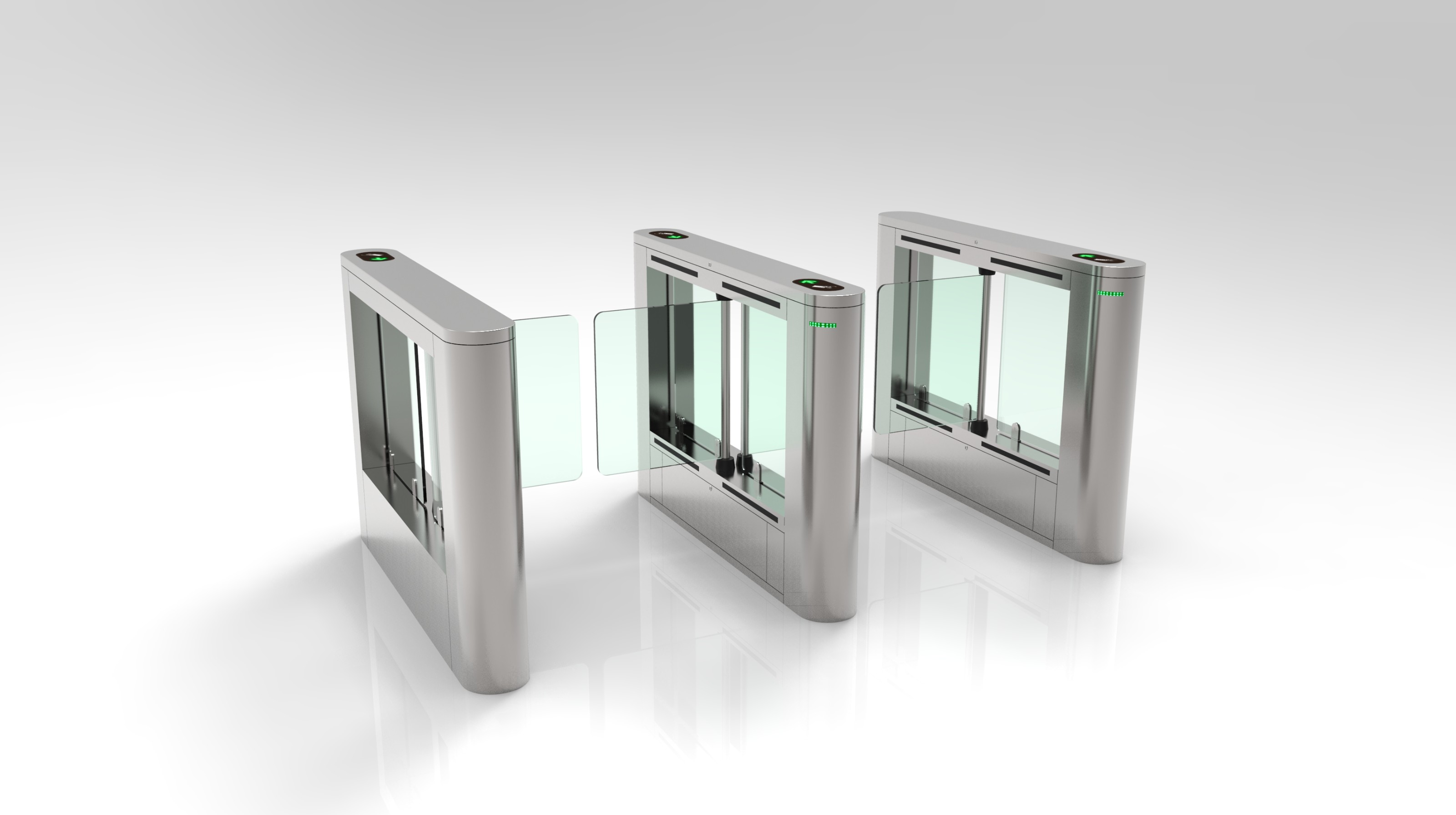

AUTO Swing Barrier AT-S900

AUTO Swing Barrier  AT-S900

Swing barrier description:

Swing barrier has small installation footprint while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby

stroller or user with big luggage to pass through with comfort.

AT series swing barrier compact size and turbular shape allow it to easily fit into places with very limited space. Access control

and time attendance reader can be integrated into top cover.

AT series swing barrier design is simplified to achieve optimum function at more affordable cost.  Control system mechanism is

modular for easy maintenance servicing and part replacement.

AT series swing barrier is typically used together with flap barrier or turnstile as manual lane for handicapped user in building lobby.

Ideal for low traffic and light duty site that requires more affordable solution.

Swing barrier features :

     RELIABILITY

Patented compact mechanism ensures the long  life of the lubricating oil inside and high quality electrical components.

      WIDEST OPENING

Compared to tripod turnstile and flap barrier, swing barrier allow widest opening clearance.2 unit swing barrier can be installed on same lane to give maximum clearance 910 mm (inclusive 10 mm clearance).

      CUSTOMIZE OPENING

Swing barrier allow customizable opening. The wing can be cut short according to clearance available at site to achieve perfect fitting.Control system will auto synchronize both swing barrier installed in the same lane. Both swing barrier will open and close at

the same time.

      EASY INTEGRATION

A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal. After delay timer elapsed, swing barrier will automatically close back by itself.

       DOUBLE SAFETY

Optional IR sensor can be installed to auto reverse the gate if obstacle is detected during closing. This prevent the closing gate to hit user that is still in the lane passage.

       EMERGENCY RECOVERY

During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of emergency.

When the power resume, swing barrier will automatically close back.
