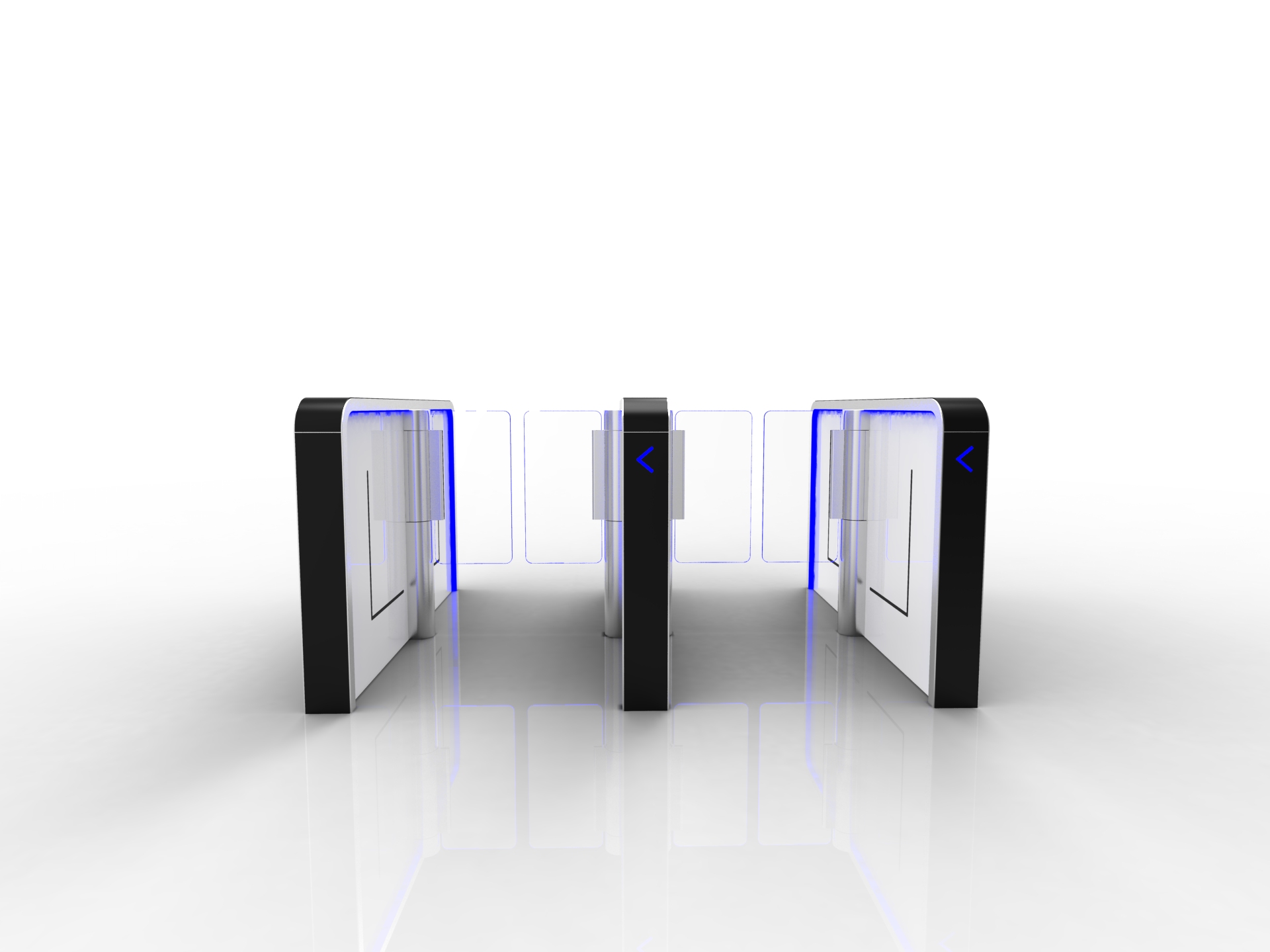

Speed Gate AT310
AT series speed gate is an automatic motorized stainless steel speed gate,it has smallest installation footprint
while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big
luggage to pass through with comfort.
AT series speed gate compact size and turbular shape allow it to easily fit into places with very limited space.
Access control and time attendance reader can be integrated into top cover.
Description | Parameters |
Lane Width | 560-900mm |
IP | IP54 |
Pass Speed | 30 persons/min |
Power supply | AC220V/110V,50/60Hz |
Drive Mode | Motor drive |
Max Power Consumption | 200W |
Opening time | 0.3S |
Humidity | ≤90% coagulation free |
Noise | ≤50dB |
Service Life | 5,000,000 cycles |
Outside packing | 146x110x31cm |
Working Environment | -20°C~+60°C |
Gross Weight | 85KGS |
ALARM BUZZER DETECTION FOR
UNAUTHORIZED USAGE
Alarm buzzer function will be triggered when the user is passing thru without authorization , tail gaiting or incorrect direction.
ELEGANT DESIGN

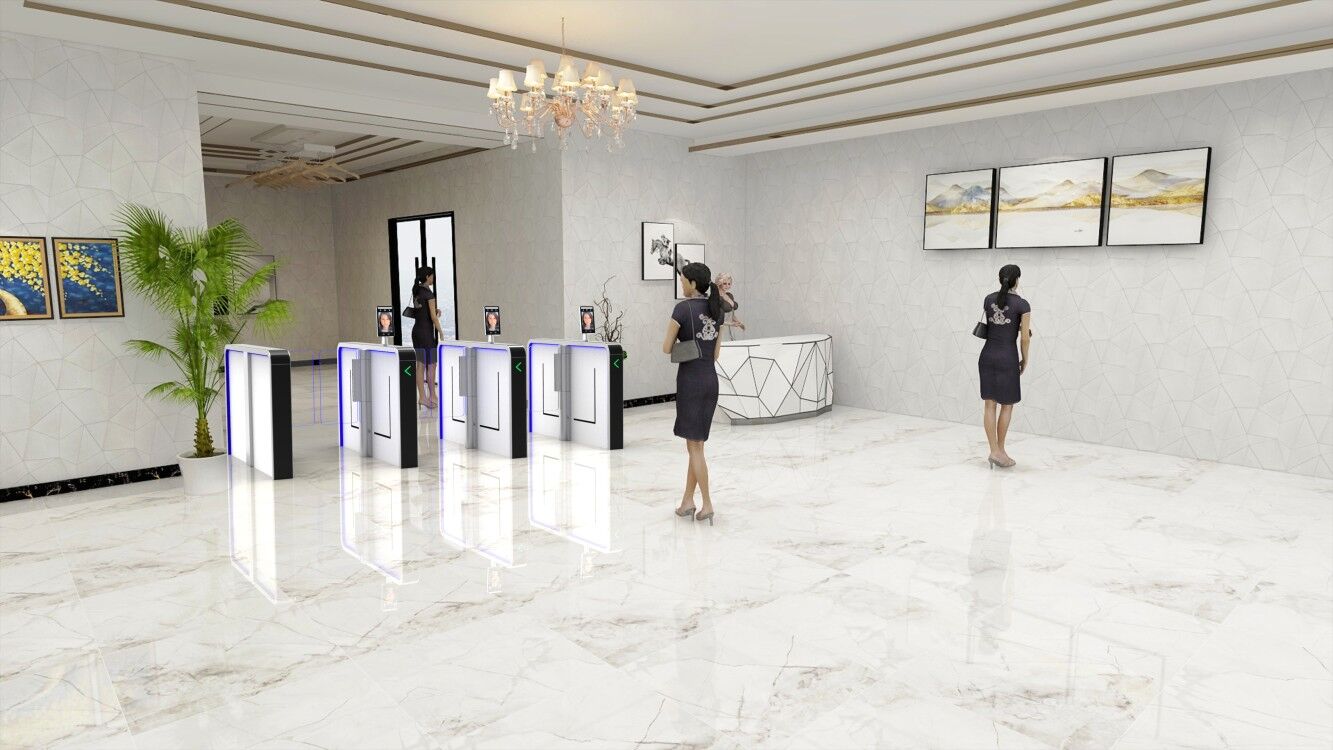

Slim form factor, premium stainless steel and glass panel material with elegant arc design effectively help create an welcoming and elegant prestigious atmosphere at building entrance to impress your visitors.
DOUBLE SAFETY
Door will automatically reverse once safety IR detected obstacle or when a small force is detected blocking its motion. This dual detection feature is to prevent injury caused by door hitting people.
EASY INTEGRATION
A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal. After delay timer elapsed, swing barrier will automatically close back by itself.
MINIMUM MAINTENANC
Uses brushless DC motor eliminate the need of changing carbon brush thus reducing maintenance work. Key internal parts is treated with anti-rust and anti-septic to ensure long term reliability.
EMERGENCY RECOVERY
During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of emergency. When the power resume, swing barrier will automatically close back.
