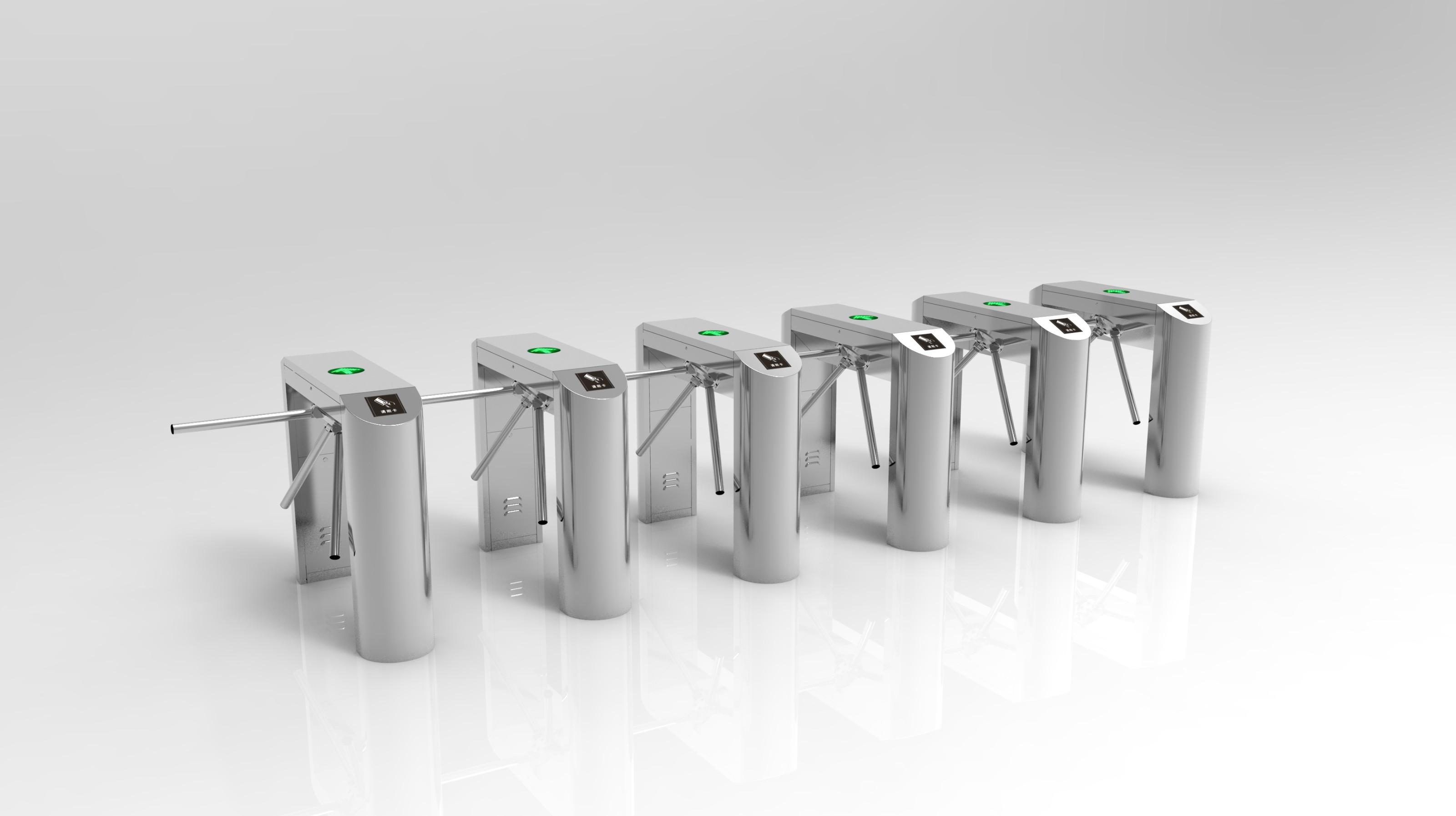

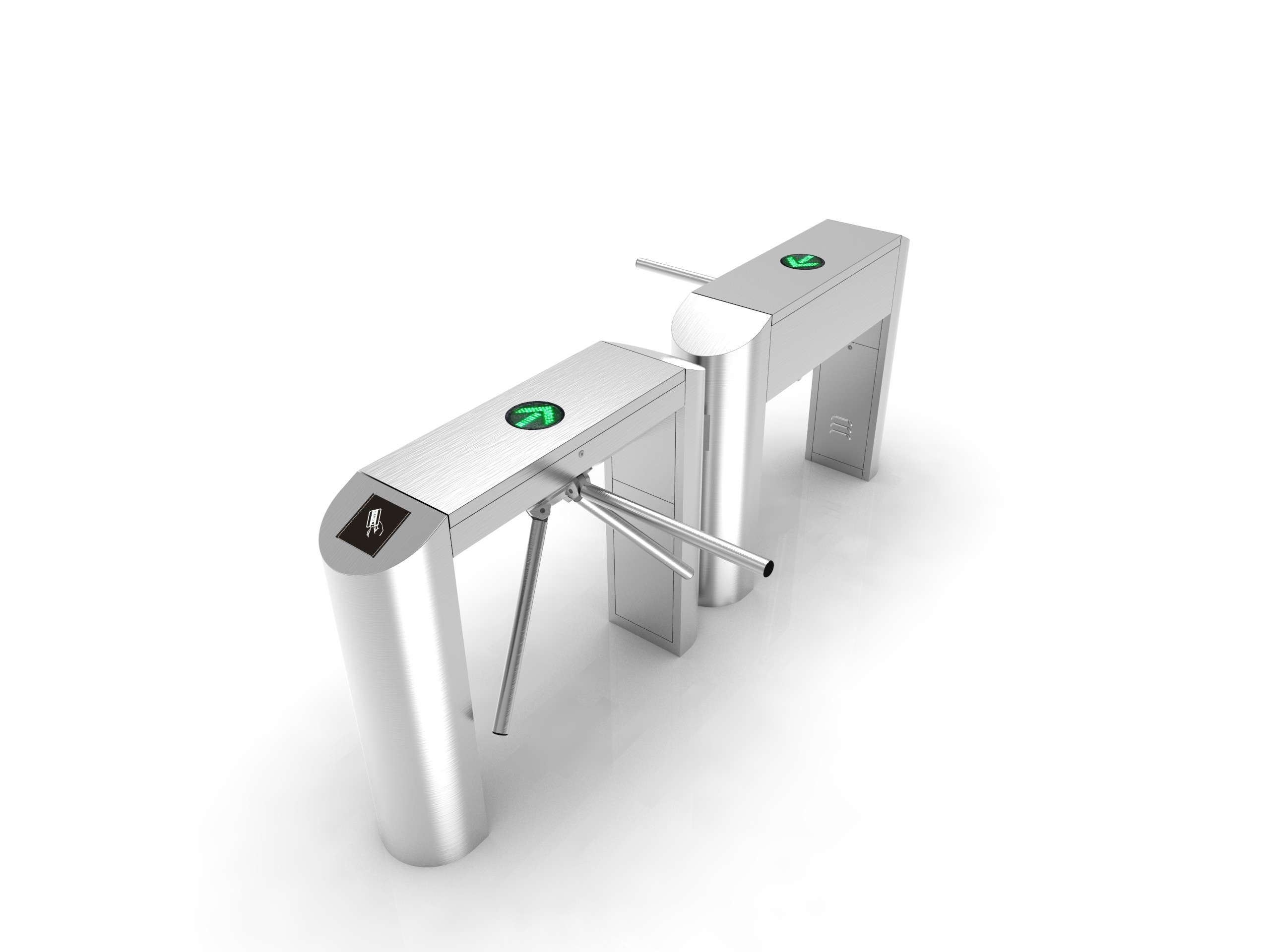

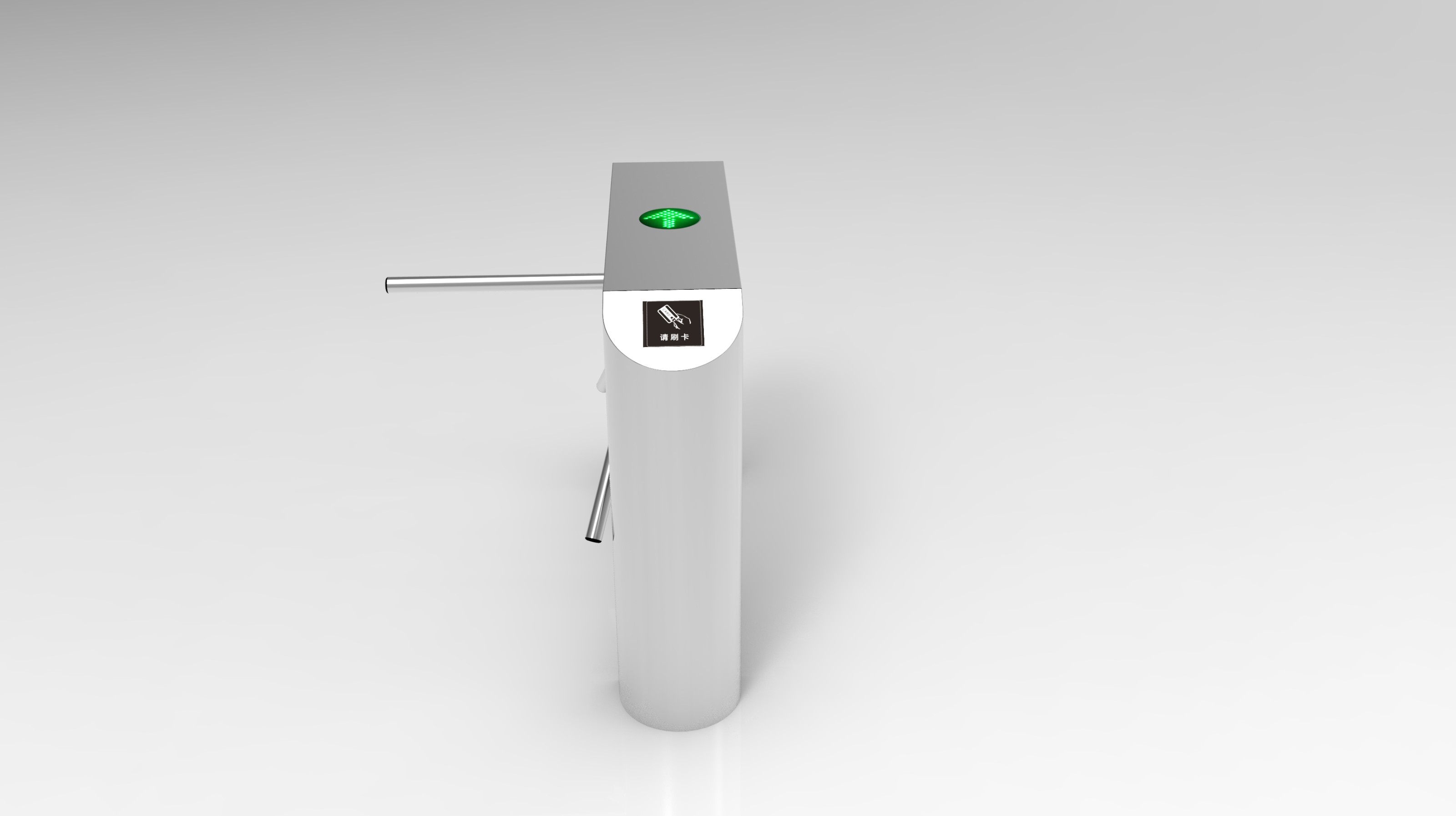

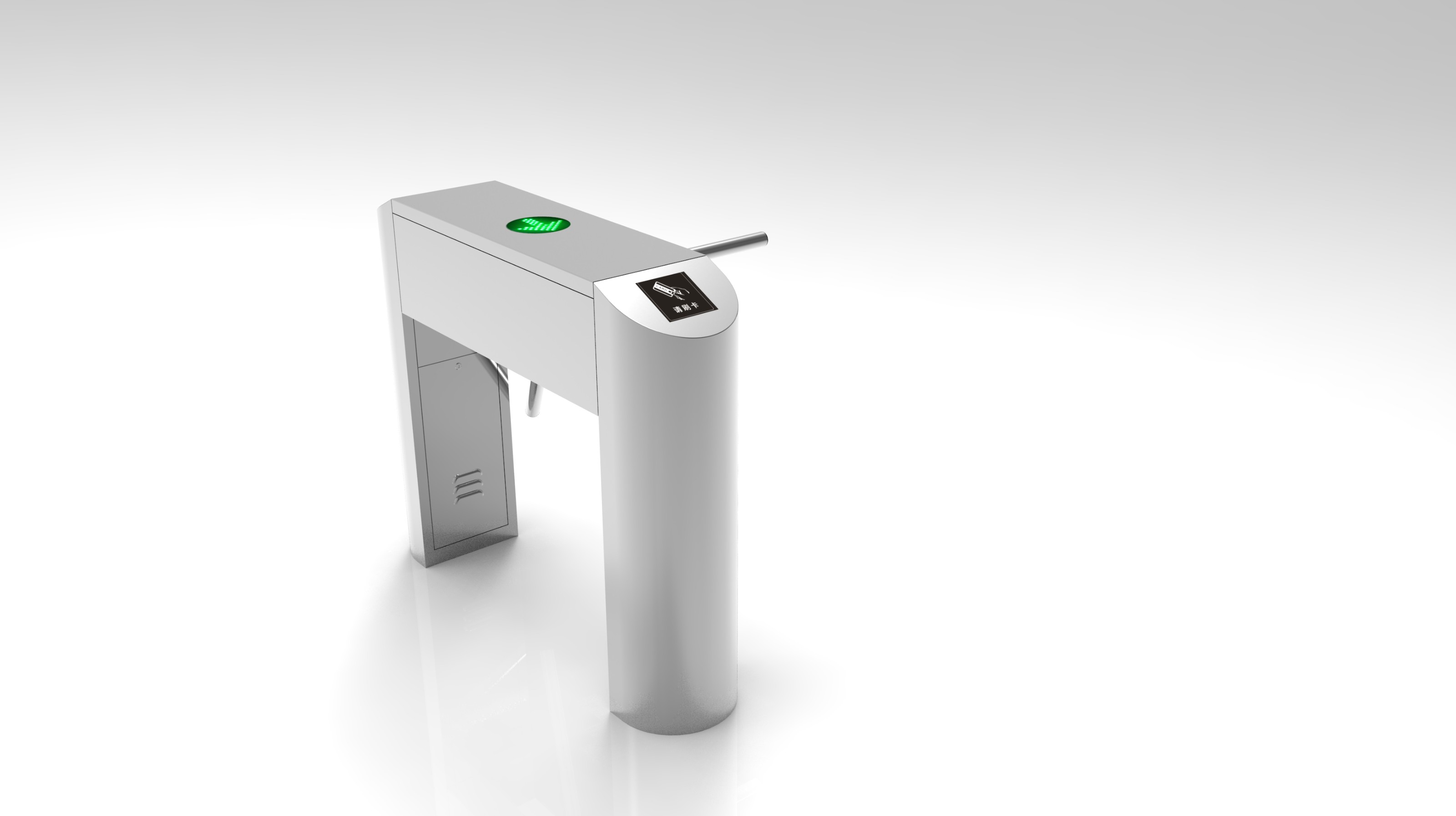

AUTO Tripod turnstile AT-T002
AT series tripod turnstile is an electro mechanical turnstile. Full-auto type unit with solenoid locking
mechanism with electric motor. Semi automatic design without motor allows it to be more economical.
Sturdy rock solid internal mechanical parts design maximize its durability for industrial usage.
AT series tripod turnstile can effectively control high volume human traffic ( up to 30 person per minutes )
while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system
for ticketing, access control or time attendance. CF series is suitable for indoor&outdoor. They are optimized
economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game
park, bank and etc.
Description | Parameters |
Lane Width | 550-570mm |
IP | IP54 |
Pass Speed | 30 persons/min |
Power supply | AC220V/110V,50/60Hz |
Drive Mode | Motor drive |
Max Power Consumption | 200W |
Opening time | 0.6S |
Humidity | ≤90% coagulation free |
Noise | ≤50dB |
Service Life | 5,000,000 cycles |
Outside packing | 67x110x42cm/130x110x42cm |
Working Environment | -20°C~+60°C |
Gross Weight | 65KGS/85KGS |
According to different control modules, this series can be divided into Fully-Automatic,Semi-Automatic, and Manual Type.
First, for manual type, it doesn't have electric control device. For automatic type, it can be compatible with card, finger print, bar code etc.
Second, for manual type, it is single direction. For automatic type, it is bi-directional.
Third,for full-auto type, it is motorized. For semi-auto, it is solenoid.
Forth, for full-auto type, after card reading, the arm will rotate 10-15 degree. Passengers push it to pass. For semi-auto type, after card reading, passengers push the arm to pass.
Lastly, for full-auto type, when power failure, the arms will drop automatically, and when power on again, the arms will up automatically. For semi-auto type, when power failure, the arms will drop automatically, and when power on again, it needs people to lift it.
