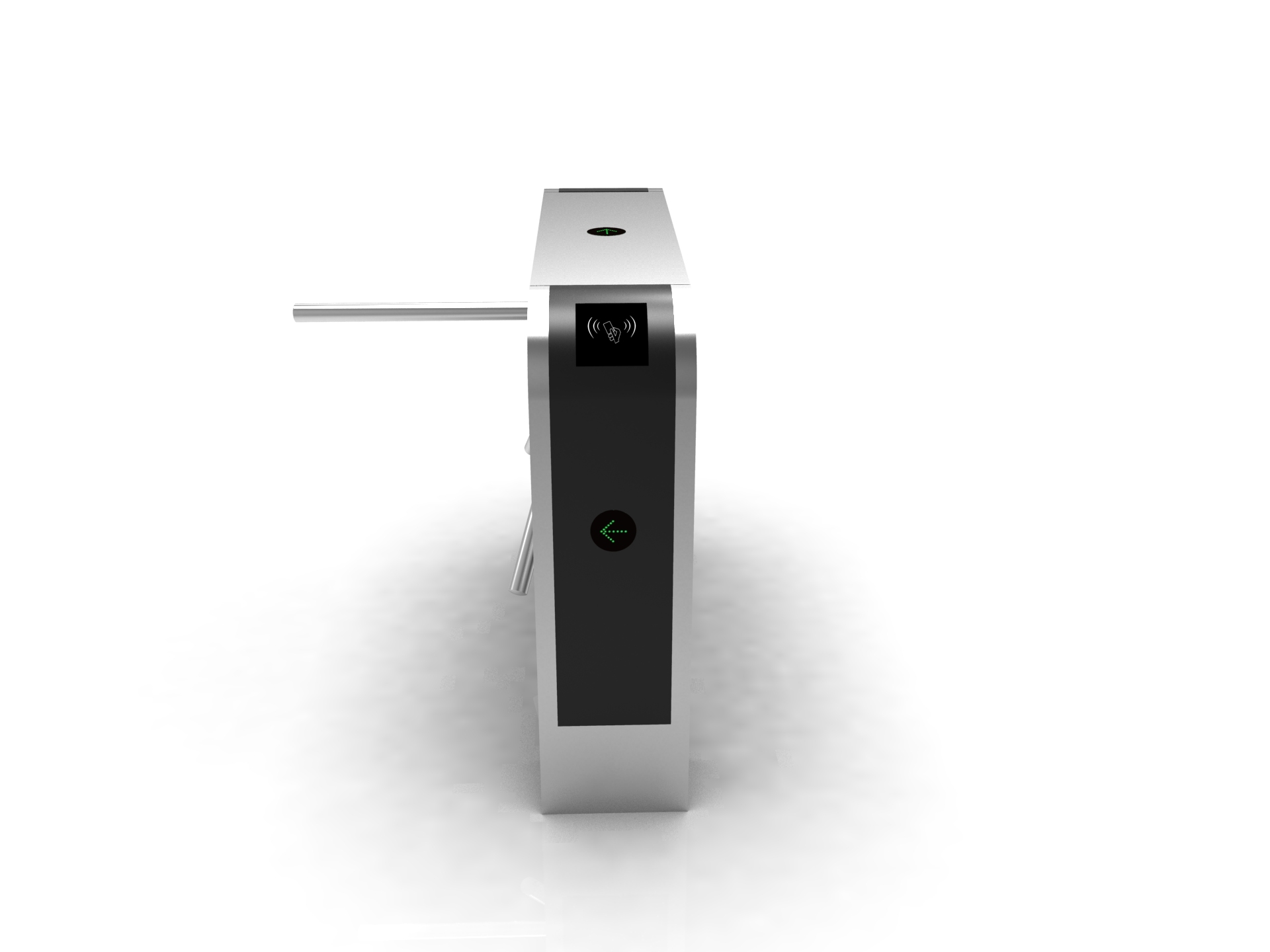

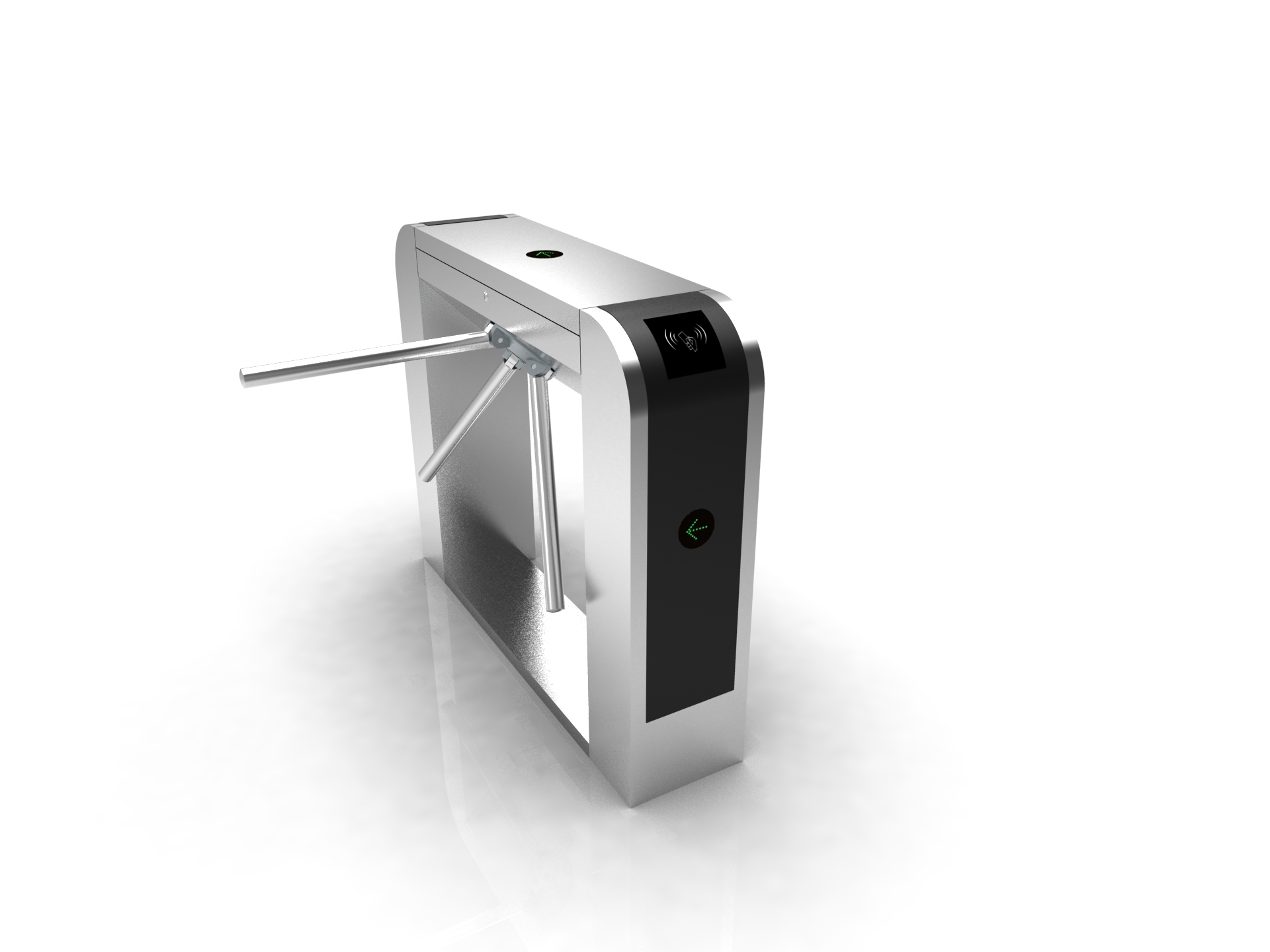

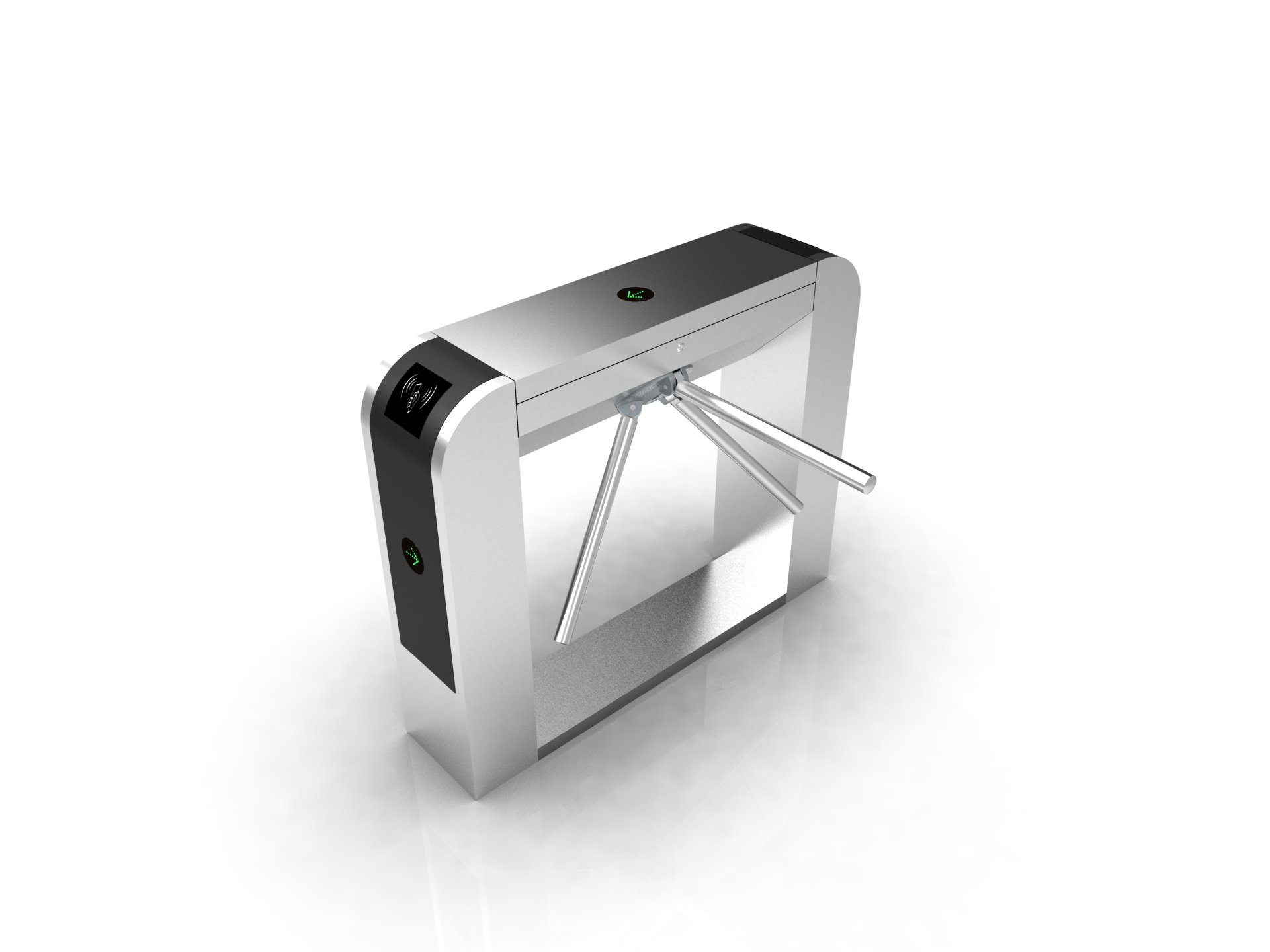

AUTO Tripod turnstile AT-T003

AUTO Tripod turnstile AT-T003

AT series tripod turnstile is an electro mechanical turnstile. Full-auto type unit with solenoid locking mechanism with electric motor.

Semi automatic design without motor allows it to be more economical. Sturdy rock solid internal mechanical parts design maximize

 its durability for industrial usage.

AT series tripod turnstile can effectively control high volume human traffic ( up to 30 person per minutes ) while still maintaining

a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.

CF series is suitable for indoor&outdoor. They are optimized economical solution for railway, bus station, factory, colleges,

commercial building, library, stadium, game park, bank and etc.

        RELIABILITY

Alloy steel tripod hub prevents mechanical wear.Patented compact mechanism ensures the long  life of the lubricating oil inside and high quality electrical components.

      SEMI AUTO ROTATION

Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.

      EASY MAINTENANCE

Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement.

       ANTI TAIL-GATING

Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically relock back if nobody pass through after a preset delay time.

        EASY INTEGRATION

Turnstile is triggered to open via dry contact relay output for bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black arylic. Top cover and and side leg can be opened to install external devices.

       USER FRIENDLY

LED at top cover indicates approved entry direction after flash card. During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.
